Hand Operated Safety Shower Cum Eyewash
It is a combination unit consisting of body shower & eyewash
Body shower is operated by pull rod
Eyewash is operated by push lever
Pipe: Stainless steel 304 grade confirming to schedule 40
Shower head, eyewash bowl, Push plate & pull rod: Stainless steel 304 grade
Eyewash sprinkler: heavy duty stainless steel 304 grade – one piece CNG finish
Safety Shower Cum Eyewash (Hand Operated)
It is a combination unit consisting of body shower & eyewash
Body shower is operated by pull rod
Eyewash is operated by push plate
Pipe: GI (C-class) as per IS 1236
Accessories: ABS plastic – yellow colour
Push plate & pull rod: MS Galvanised.

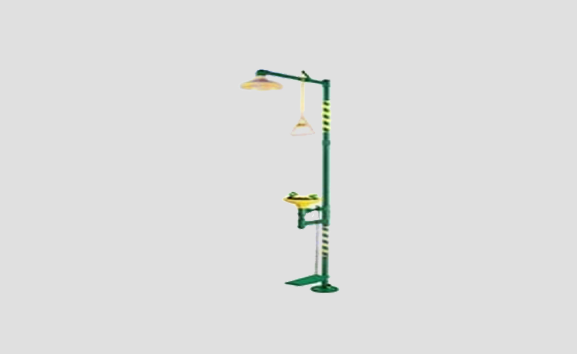

Foot Operated Safety Shower Cum Eyewash
It is a combination unit consisting of body shower & eyewash
Body shower is operated by pull rod
Eyewash is operated by foot pedal
Pipe: GI (C-class) as per IS 1236
Accessories: ABS plastic – yellow colour
Push plate & pull rod: MS Galvanised
.

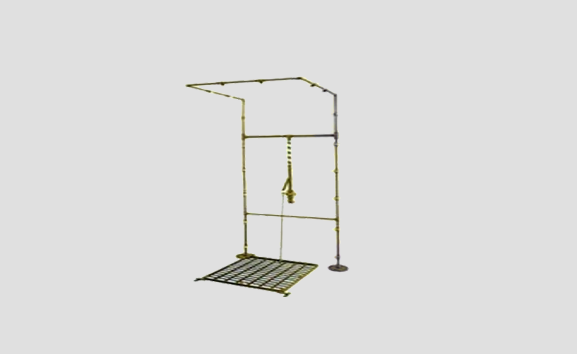

Multiple Nozzle Safety Shower (Drench Shower)
This safety shower gets operated by standing on platform
Multiple nozzles are provided
Essential in areas where large amounts of chemicals are handled or stored
Material of construction either GI or SS

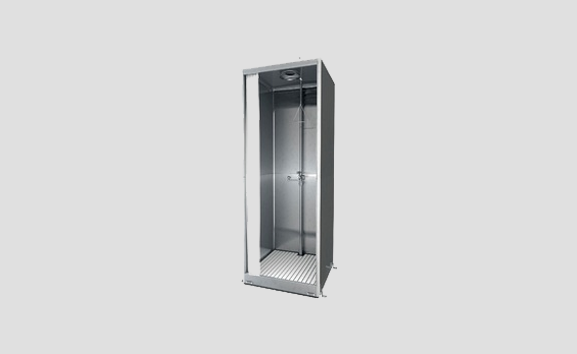

Cabinet Type Eyewash and Shower
Specially made single entry stainless steel cabinet equipped with stainless steel shower and eyewash with provision of sliding curtain.
Product is ideal for highly sensitive equipment areas to avoid water spread
Shower Head – 8”diameter stainless steel 20 GPM flow control
Shower Valve – 1” stainless steel ball valve with stainless steel pull rod
Eye wash spray head assembly – Two GS-plus spray heads mounted on stainless steel supply arms. Each spray head has individually adjustable flow control and filter to remove impurities from water
Eye wash valve - 1/2’’ IPS SS push plate
Wall of cabinet - 16 gauge type 304 stainless steel at the bottom and 18 gauge 3 sided wall of cabinet is matt finish and welded seams
Pipe and fittings - All pipe and fittings are of stainless steel 304
Supply – 1” NPT T top and bottom female inlet
Waste – 4” NPT female outlet
