Fire Hydrant Valves

A range of Hydrant valves are manufactured to suit various requirements as below. We also manufacture ISI marked Hydrant valves to Indian standard IS:5290, as also satisfying requirements of other agencies such as MMD (Mercantile Marine Dept).

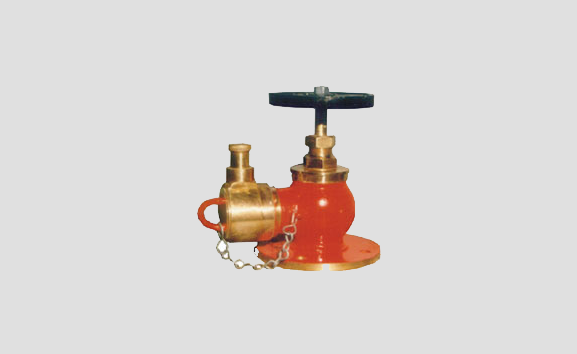

Hydrant Valves Oblique

Item Description : 63mm Single outlet Landing Valve as per IS:5290 Type A, ISI Marked, having 75mm NB inlet & 63mm Female Inst. Outlet

Material of construction : Gunmetal IS:318 LTB2/ SS304/ SS316 (or as per client specification)

Inlet : Flanged (as per client requirement)

Outlet : Generally Female Instantaneous (Male Inst. Outlet available on request)

Size :38mm to 63mm

Material : GM / SS Flange Drilling : IS:1538 / ASA 150 LBS / IS:6392

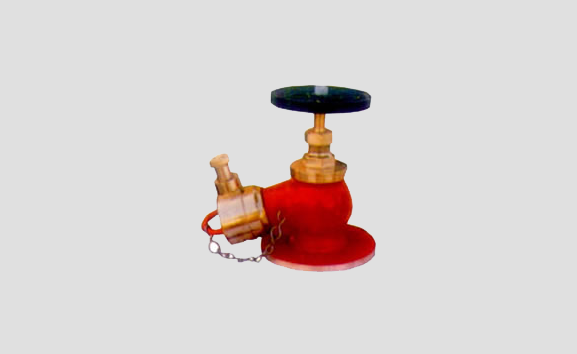

Right Angle

Item Description : 63mm Fire Hydrant Valve Right Angle, having 63mm NB inlet & 63mm Female Inst. outlet

Material of construction : Gunmetal IS:318 LTB2/ SS304/ SS316 (or as per client specification)

Inlet : Flanged (as per client requirement)

Outlet : Generally Female Instantaneous (Male Inst. Outlet available on request)

Size :38mm to 63mm

Material : GM / SS Flange Drilling : IS:1538 / ASA 150 LBS / IS:6392

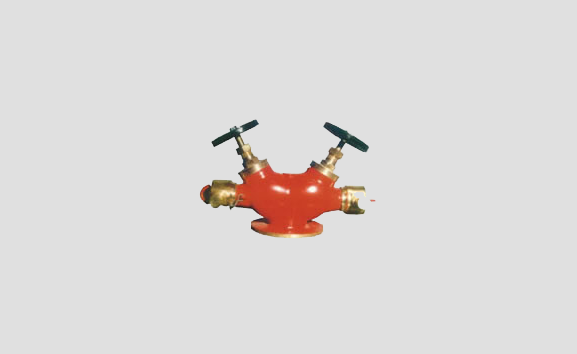

Double Controlled

Item Description : 63mm Double Controlled Hydrant Valve, 100mm NB Inlet & 63mm, 2 nos. Female Inst. outlet as per IS:5290 Type B

Material of construction : Gunmetal IS:318 LTB2/ SS304/ SS316 (or as per client specification)

Inlet : Flanged (as per client requirement)

Outlet : Generally Female Instantaneous (Male Inst. Outlet available on request)

Size :38mm to 63mm

Material : GM / SS Flange Drilling : IS:1538 / ASA 150 LBS / IS:6392

.

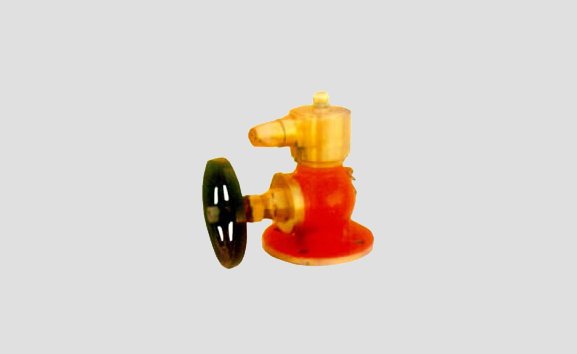

Downward

Item Description : 63mm Downward Pattern Fire Hydrant Valve having 63mm NB Inlet & 63mm Female Inst. outlet

Material of construction :Gunmetal IS:318 LTB2/ SS304/ SS316 (or as per client specification)

Inlet : Flanged (as per client requirement)

Outlet : Generally Female Instantaneous (Male Inst. Outlet available on request)

Size :38mm to 63mm

Material : GM / SS

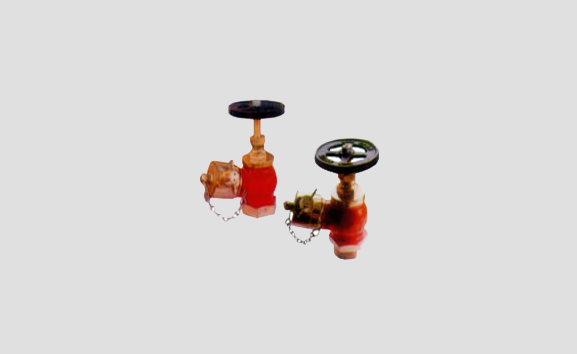

Horizontal

Item Description : 63mm Fire Hydrant Valve Straight way (Wheel Valve Pattern) having 63mm NB inlet & 63mm Female Inst. outlet

Gunmetal IS:318 LTB2/ SS304/ SS316 (or as per client specification)

Inlet : Flanged (as per client requirement)

Outlet : Generally Female Instantaneous (Male Inst. Outlet available on request)

Size :38mm to 63mm

Material : GM / SS Flange Drilling : IS:1538 / ASA 150 LBS / IS:6392

Double Controlled

Item Description : 63mm Double Controlled Hydrant Valve, 100mm NB Inlet & 63mm, 2 nos. Female Inst. outlet as per IS:5290 Type B

Material of construction : Gunmetal IS:318 LTB2/ SS304/ SS316 (or as per client specification)

Inlet : Flanged (as per client requirement)

Outlet : Generally Female Instantaneous (Male Inst. Outlet available on request)

Size : 38mm to 63mm

Material : GM / SS Flange Drilling : IS:1538 / ASA 150 LBS / IS:6392
