Solid Jet Nozzles

SE Monitor Jet nozzles of excellent quality and performance are available for use with different sizes of Monitors. Ideal for projecting water over long distances, SE Jet nozzles have been designed to ensure maximum range performance, with minimum water dropout from the water jet. Available as per IS:8442 specified sizes, or designed to client flow requirements.

Item Description : Monitor Jet Nozzle, having 63mm / 75mm / 100mm Female BSP Thread Inlet & 32m / 38mm / 45mm Bore dia Nozzle with Cap

Material of construction : Aluminium, G.M. and SS 304

Foam Barrels

SE Foam Barrels produce quality aspirated foam for application in many flammable liquid fires/ spills, and similar risks. These barrels are designed to give the desired expansion (typically 1:6 to 1:8), and proper mixing of the foam, to ensure a coherent foam stream of good reach. These are available as self inducing options with a PVC Pick-up tube and SS304 dip tube. Convenient Swivel type inlet suitable for use with 2.5”, 3” and 4” size monitors.

Item Description : Foam Barrel having 63mm/75mm/100mm Female BSP Thread Inlet, capable of giving 1800 LPM to 3600 LPM Water & 3 to 6 times higher Foam Jet

Material of construction : Aluminium or Copper/G.M. combination

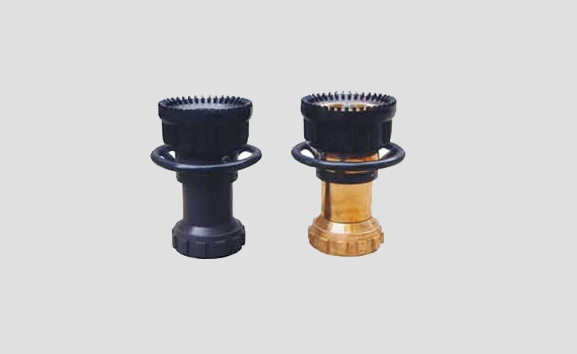

Super Stream Nozzles

SE Super Stream nozzles, are master stream nozzles, for use with water or premix foam solution and capable of producing jet for excellent reach, and spray for vapour dilution or personal protection. Finely machined and crafted, these nozzles are available in various capacities to suit different monitors. anodized Aluminium, G.M. or SS304. Large rubber bumber for mechanical protection. Convenient Swivel type inlet suitable for use with 2.5”, 3”, 4” or 6” size monitors.

Item Description : Master Stream Water Monitor Nozzle capable of giving excellent reach with Hollow Jet & Spray of 1750 LPM to 4500 LPM capacity

Material of construction :Anodized Aluminium, G.M. or SS304

Jet / Spray Nozzles

SE Monitor Jet/Spray nozzles give the option of projecting the water in form of a hollow jet for distant reach or Spray for vapour dilution/ personal protection. These are available in sizes suitable for 63 and 75 NB monitors.

Item Description : Monitor Jet Nozzle, having 63mm / 75mm / 100mm Female BSP Thread Inlet & 32m / 38mm / 45mm Bore dia Nozzle with Cap Monitor Nozzle, Jet & Spray having 63mm / 75mm / 100mm screwed Inlet capable of giving excellent Hollow Jet & Spray

Material of construction :Aluminium, G.M.

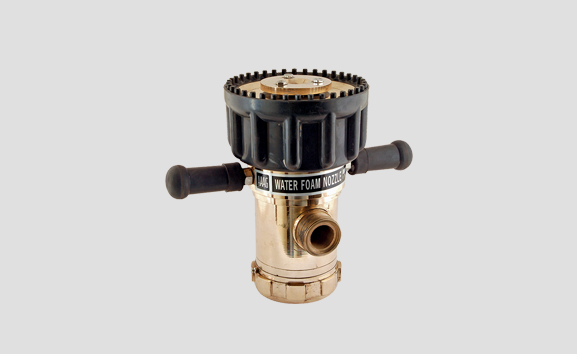

Water & Foam Monitors

SE Water foam nozzles give the option of projecting water or secondary aspirated (also called unaspirated or non-aspirated) foam over long distances. Normal or primary aspirated foam cannot be projected over a long distance, and hence has limited range. SE Water Foam nozzles produce secondary aspirated foam, which typically have expansion ratios of around 1:3 to 1:4, and being more dense. Convenient Swivel type inlet suitable for use with 2.5”, 3”, 4” and 6” size monitors. Supplied with matching Pickup tube and piercer.

Item Description : Water/Foam Nozzle for Monitor having 63mm/75mm/100mm Female BSP Thread Inlet, capable of giving Water/Foam Spray 1800 LPM to 3600 LPM Water & 6 times higher Foam spray

Material of construction : Anodized Aluminium, G.M. or SS304

LX Foam Branches

SE Low Expansion Jet /Spray type Foam Branches give the operator the option of projecting foam in the form of a jet (to tackle fires from a distance) or Spray (for quick coverage of spills, etc). Ideal for use with AFFF in aircraft crash situations and areas where flammable liquid spill occurrences are likely. Available with nominal foam solution capacity of 450 lpm (FB 10X JS) at 7 bars pressure.

Construction: Aluminum and SS 304 versions available. 2.5” Instantaneous G.M. Male Inlet

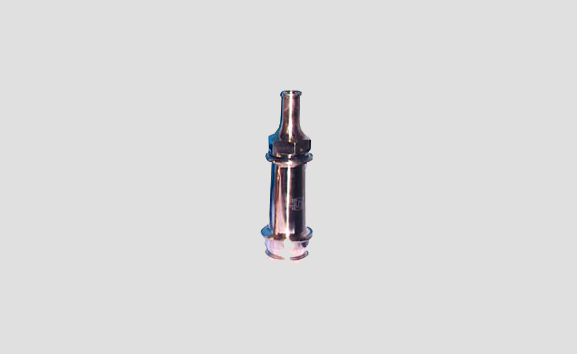

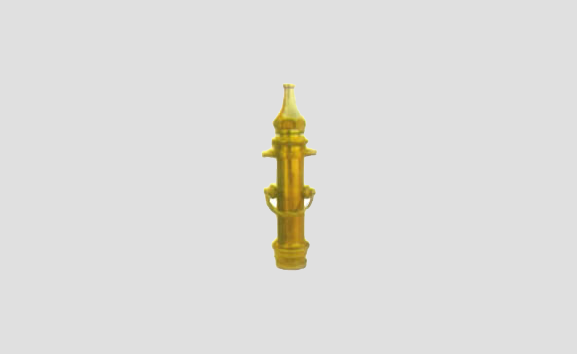

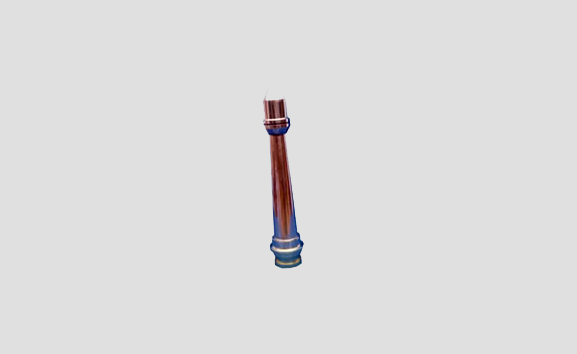

Short Branch

Different types of Firefighting branches and nozzles for various applications are manufactured by us. These are manufactured to strict quality standards and tested to ensure reliable performance. Provided with 63 mm Male Instantaneous Inlet, different Inlets and sizes can be provided on request. The Short branch is still commonly used in most Fire Brigades as the basic Firefighting nozzle. This can be fitted with a choice of nozzles suitable to flow and operational requirement.

Item Description : 63mm Branch Pipe with Nozzle as per IS:903, ISI Marked

Material of construction : G.M./ SS304/ Aluminium

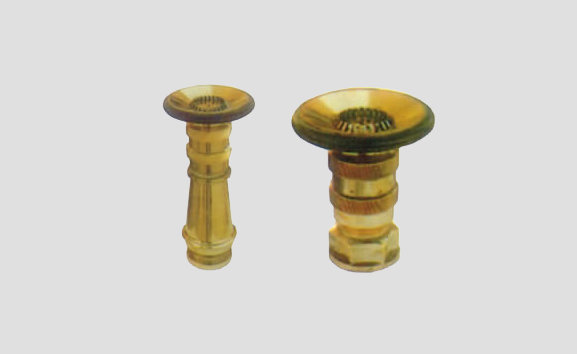

Fog Nozzle

The Fog nozzle is ideal for fires that give out large amount of heat, and hence require extensive cooling. In the fog position, this branch creates very fine droplets i.e 'fog', greatly increasing the surface area, thus helping absorb maximum heat.

Manufactured as per Indian Standard (BIS) IS:952

Item Description : Gun Metal 63mm Fog Nozzle as per IS:952

Material of construction : G.M. (chrome plated)/ SS304

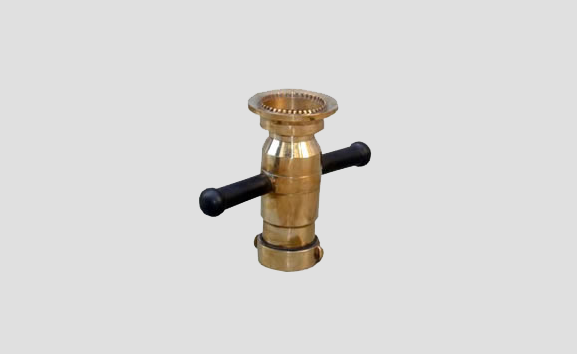

Hand Control

The Hand Control nozzle is used by many municipal and industrial Fire brigades for firefighting. It has an On-Off facility, at the same time a curtain type spray can be operated simultaneously with jet application.

Manufactured as per Indian Standard (BIS) IS:952

Item Description : Master Stream Water Monitor Nozzle capable of giving excellent reach with Hollow Jet & Spray of 1750 LPM to 4500 LPM capacity

Material of construction :Anodized Aluminium, G.M. or SS304

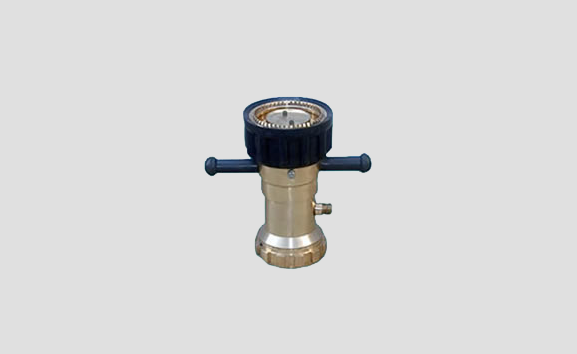

Triple Purpose

The Triple purpose nozzle give the operator choice of three operations i.e. jet, spray and shut-off. Because of ease of operation, and limited back-thrust, it is fast replacing the standard short branch in the industrial sector.

Manufactured as per Indian Standard (BIS) IS:2871

Item Description : Gun Metal 63mm Universal Nozzle (Tripple/Diffuser) as per IS:2871, capable of giving Jet & Spray Gun Metal 63mm Screwed Universal Nozzle having G1 ¾ size BSP Inlet

Material of construction : G.M. (chrome plated)/ SS304

Diffuser

The Diffuser / Navy type nozzle, also known as Combination nozzle, is widely used in the shipping and marine applications. Our Diffuser nozzles are in use on many ships, both Indian and foreign and have been exported to many countries.

Item Description : Gun Metal 63mm Male Inst. Inlet Navy Diffuser Nozzle

Multipurpose

The Multipurpose (curtain) nozzle is popular throughout the world as the basic firefighting nozzle as it is low in weight, has lower flow rates, and a shut-off facility. An additional curtain facility gives the operator better protection from radiated heat.

Item Description :63mm Ball Design with Jet & Spray and ON/OFF Control

Material of construction :G.M. (chrome plated)

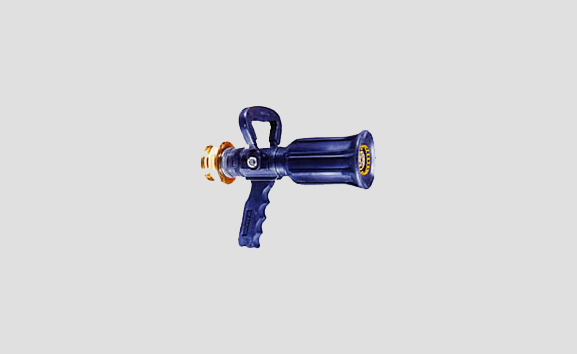

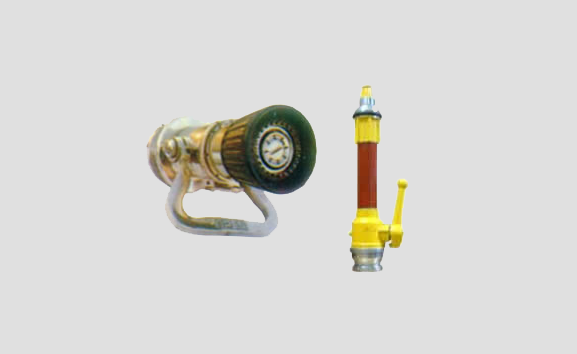

Constant Flow

Our Constant Flow Nozzle 'Unilite' ensures efficient water flow under varying pressure conditions. Aluminium alloy body and parts mean that the branch is light and easy to handle. Fast gaining popularity amongst industrial brigades. Flow range - 160 to 600 lpm, Pressure range - 3.5 to 7 kg/cm2.

Item Description :63mm Constant Flow Nozzle with ON/OFF Control and Jet & Spray arrangement with Pistol Grip Handle.

Material of construction :Al. alloy (anodized), Rubber bumper, Pistol grip handle.

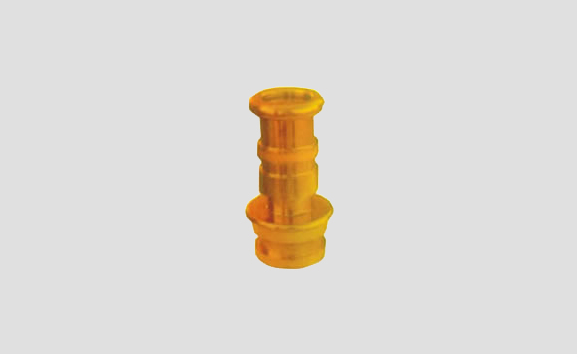

Oil fire Nozzle

Different types of Firefighting branches and nozzles for various applications are manufactured by us. These are manufactured to strict quality standards and tested to ensure reliable performance. Provided with 63 mm Male Instantaneous Inlet, different Inlets and sizes can be provided on request.

Item Description :Gun Metal 63mm Oil Fire Nozzle.

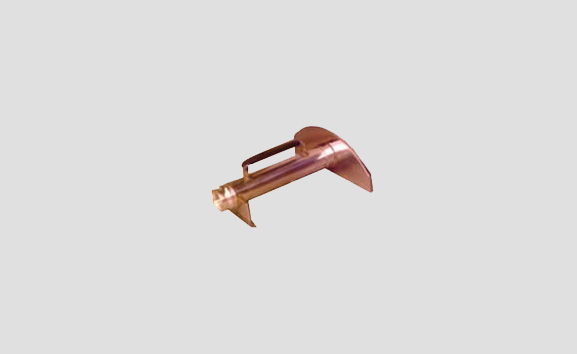

Curtain Nozzle

Curtain nozzles create a semicircular spray of water, useful for protecting personnel and equipment from the radiated heat of fire, and preventing the spread of fire. Available in different capacities, with portable and fixed options.

Item Description :63mm Jumbo (Mayura) Curtain Nozzle having 63mm Male Inst. Connection (Flange Connection also available)

Material of construction : SS304 (carrying handle provided in portable models)

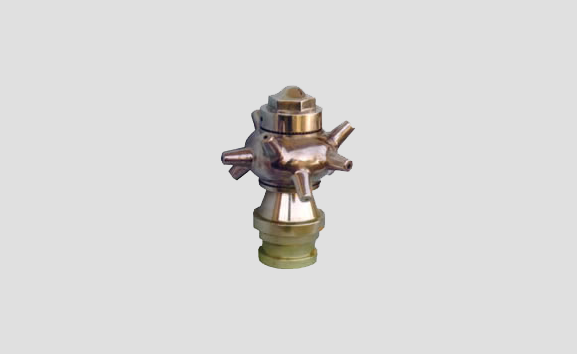

Revolving Nozzle

Revolving Nozzles creates a 3-dimensional spray, causing excellent cooling. This can be used for protecting fixed Roof Storage tanks as also in fire prevention applications.

Made as per Indian Standard (BIS) IS: 906, available in different capacities/ range, and with coupling/ flanged connection.

Item Description :Gun Metal 63mm Revolving Nozzle as per IS:906 having 63mm Male Inst. Connection (Flange Connection also available)

Material of construction : G.M. (chrome plated)/ SS304
